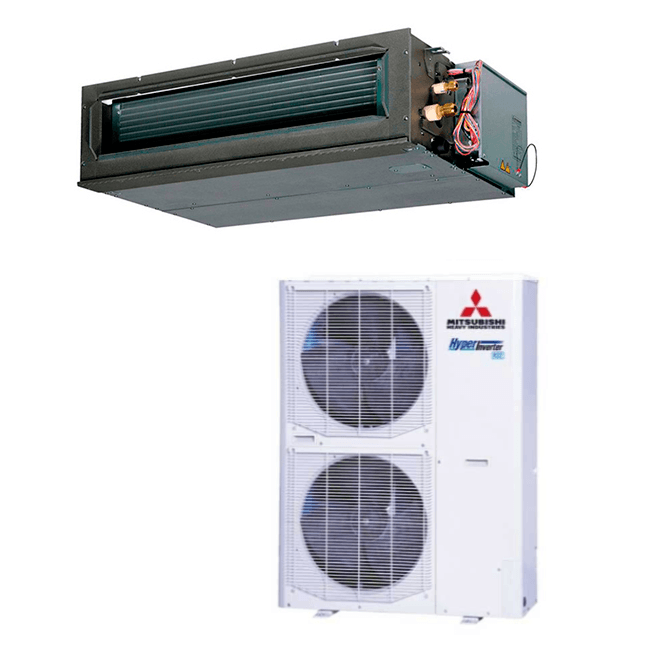

FDU-VF Hyper Inverter Ducted 3Phase

Compare

From: £1,790.25 - £2,221.50 ex. VAT

Clear

Description

Indoor unit   FDU100VF2 FDU125VF FDU140VF
Outdoor unit   FDC100VSX FDC125VSX FDC140VSX
Power source 3 Phase 380-415V, 50Hz / 380V, 60Hz
Nominal cooling capacity (Min~Max) kW 10.0 ( 4.0 ~ 11.2 ) 12.5 ( 5.0 ~ 14.0 ) 14.0 ( 5.0 ~ 16.0 )
Nominal heating capacity (Min~Max) kW 11.2 ( 4.0 ~ 16.0 ) 14.0 ( 4.0 ~ 18.0 ) 16.0 ( 4.0 ~ 20.0 )
Power consumption Cooling/Heating kW 2.68 / 3.02 3.49 / 3.77 4.28 / 4.42
EER/COP Cooling/Heating 3.73 / 3.71 3.58 / 3.71 3.27 / 3.62
Inrush current A 5 5 5
Max. current 16 18 19
Sound power level*1 Indoor Cooling/Heating dB(A) 65 / 65 67 / 67 70 / 70
Outdoor Cooling/Heating 70 / 70 70 / 70 72 / 72
Sound pressure level*1    1 Indoor Cooling (Hi/Me/Lo) 38 / 36 / 30 40 / 34 / 29 40 / 35 / 30
Heating (Hi/Me/Lo) 38 / 36 / 30 40 / 34 / 29 40 / 35 / 30
Outdoor Cooling/Heating 48 / 50 48 / 50 49 / 52
Air flow    1 Indoor Cooling (Hi/Me/Lo) m3/min 28 / 25 / 19 32 / 26 / 20 35 / 28 / 22
Heating (Hi/Me/Lo) 28 / 25 / 19 32 / 26 / 20 35 / 28 / 22
Outdoor Cooling/Heating 100 / 100 100 / 100 100 / 100
External static pressure*2 Pa Standard:60  Max:200
Exterior dimensions Indoor HeightxWidthxDepth mm 280 x 1,370 x 740
Outdoor 1,300 x 970 x 370
Net weight Indoor kg 54
Outdoor 105
Ref.piping size Liquid/Gas ømm 9.52(3/8″) / 15.88(5/8″)
Refrigerant line (one way) length m Max.100
Vertical height differences Outdoor is higher/lower m Max.30 / Max.15
Outdoor operating temperature range Cooling °C -15~43*3
Heating -20~20
Air filter Procure locally
Remote control (option) wired:RC-EX3, RC-E5, RCH-E3  wireless:RCN-KIT4-E2
