Description

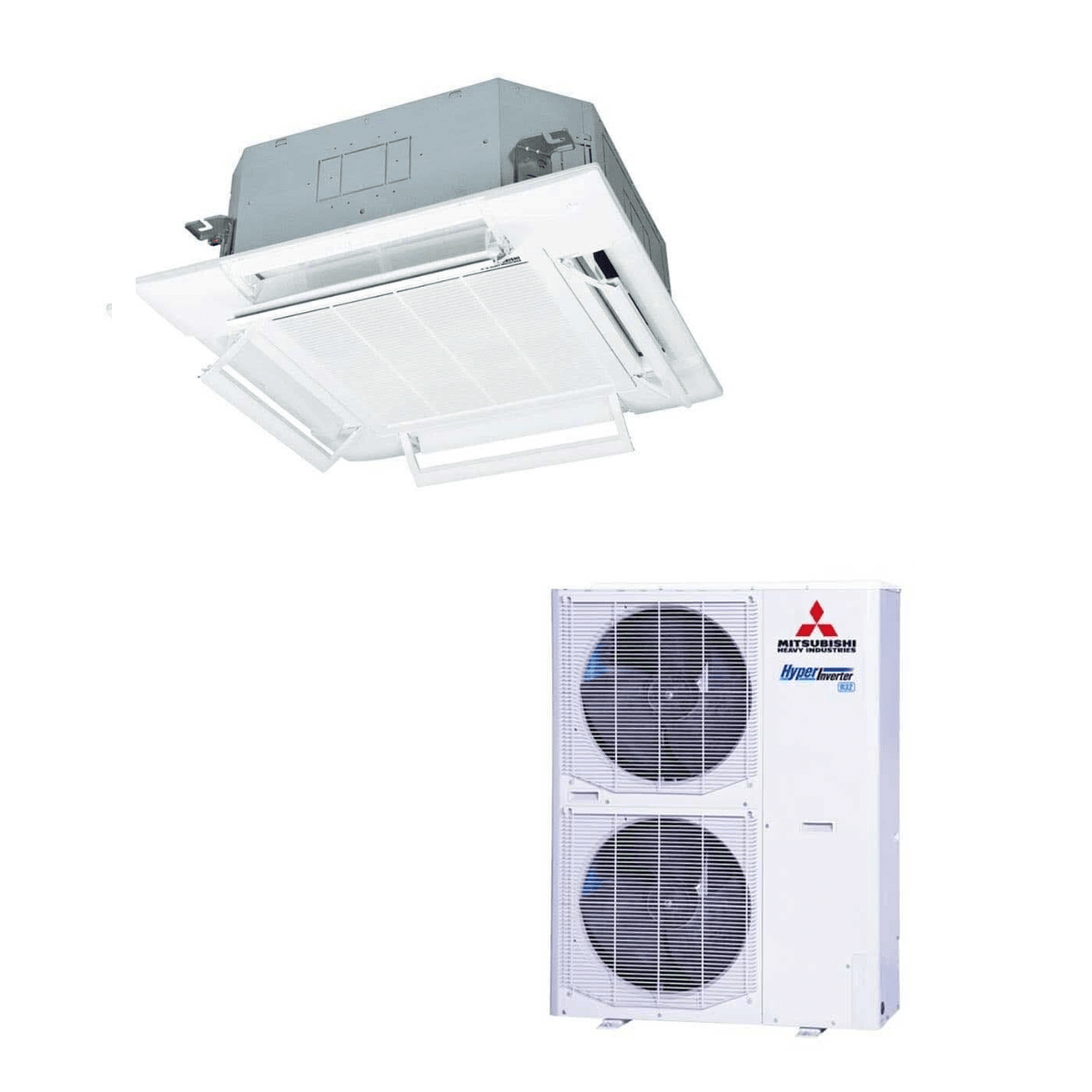

Indoor unit | FDT100VG | FDT125VG | FDT140VG | ||||
Outdoor unit | FDC100VSX | FDC125VSX | FDC140VSX | ||||
Power source | 3 Phase 380-415V, 50Hz / 380V, 60Hz | ||||||
Nominal cooling capacity (Min~Max) | kW | 10.0 ( 4.0 ~ 11.2 ) | 12.5 ( 5.0 ~ 14.0 ) | 14.0 ( 5.0 ~ 16.0 ) | |||
Nominal heating capacity (Min~Max) | kW | 11.2 ( 4.0 ~ 16.0 ) | 14.0 ( 4.0 ~ 18.0 ) | 16.0 ( 4.0 ~ 20.0 ) | |||
Power consumption | Cooling/Heating | kW | 2.50 / 2.58 | 3.42 / 3.43 | 4.26 / 4.20 | ||
EER/COP | Cooling/Heating | 4.00 / 4.34 | 3.65 / 4.08 | 3.29 / 3.81 | |||
Inrush current | A | 5 | 5 | 5 | |||
Max. current | 15 | 15 | 15 | ||||
Sound power level*1 | Indoor | Cooling/Heating | dB(A) | 63 / 63 | 64 / 64 | 64 / 64 | |
Outdoor | Cooling/Heating | 70 / 70 | 70 / 70 | 72 / 72 | |||
Sound pressure level*1 1 | Indoor | Cooling (Hi/Me/Lo) | 39 / 37 / 31 | 41 / 39 / 32 | 42 / 39 / 33 | ||
Heating (Hi/Me/Lo) | 39 / 37 / 31 | 41 / 39 / 32 | 42 / 39 / 33 | ||||
Outdoor | Cooling/Heating | 48 / 50 | 48 / 50 | 49 / 52 | |||
| Indoor | Cooling (Hi/Me/Lo) | m3/min | 26 / 23 / 17 | 28 / 25 / 18 | 29 / 26 / 19 | |
Heating (Hi/Me/Lo) | 26 / 23 / 17 | 28 / 25 / 18 | 29 / 26 / 19 | ||||
Outdoor | Cooling/Heating | 100 / 100 | 100 / 100 | 100 / 100 | |||
Exterior dimensions | Indoor | HeightxWidthxDepth | mm | Unit: 298 x 840 x 840 Panel: 35 x 950 x 950 | |||
Outdoor | 1,300 x 970 x 370 | ||||||
Net weight | Indoor | kg | 30(Unit:25 Standard Panel:5) | ||||
Outdoor | 105 | ||||||
Ref.piping size | Liquid/Gas | ømm | 9.52(3/8″) / 15.88(5/8″) | ||||
Refrigerant line (one way) length | m | Max.100 | |||||
Vertical height differences | Outdoor is higher/lower | m | Max.30 / Max.15 | ||||
Outdoor operating temperature range | Cooling | °C | -15~43*3 | ||||
Heating | -20~20 | ||||||
Panel | T-PSA-5AW-E, T-PSAE-5AW-E | ||||||
Air filter, Q’ty | Pocket plastic net x 1(Washable) | ||||||
Remote control (option) | wired:RC-EX3, RC-E5, RCH-E3 wireless:RCN-T-5AW-E2 |
