Sale!

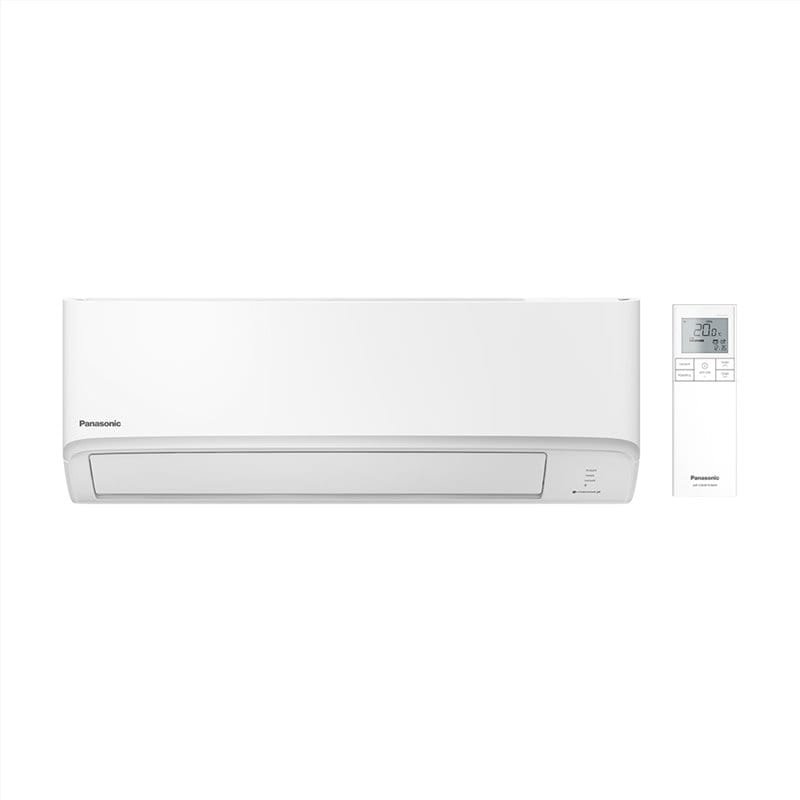

Wall Mounted TZ Compact Style Indoor Units

Compare

From: £167.70 - £497.90 ex. VAT

Clear

Description

Wall Mounted TZ
Compact Style
Indoor unit  Cooling capacity Heating capacity Connection Sound pressure
Cool — Heat (Hi / Lo / S-Lo)
Dimension / Net weight
H x W x D
Piping connections
Liquid / Gas pipe
kW / kCal/h kW / kCal/h mm dB(A) mm / kg Inch (mm)
1.6kW CS-MTZ16TKE 1.60 / 1380 2.60 / 2240 4 x 1.5 38 / 27 / 22 — 39 / 28 / 24 290 x 799 x 197 / 8 1/4 (6.35) / 3/8 (9.52)
2.0kW CS-TZ20TKEW-1 2.00 / 1720 3.20 / 2750 4 x 1.5 39 / 27 / 22 — 40 / 28 / 24 290 x 799 x 197 / 8 1/4 (6.35) / 3/8 (9.52)
2.5kW CS-TZ25TKEW-1 2.50 / 2150 3.60 / 3100 4 x 1.5 42 / 28 / 22 — 42 / 29 / 24 290 x 799 x 197 / 8 1/4 (6.35) / 3/8 (9.52)
3.5kW CS-TZ35TKEW-1 3.50 / 3010 4.50 / 3870 4 x 1.5 44 / 32 / 22 — 44 / 35 / 24 290 x 799 x 197 / 8 1/4 (6.35) / 3/8 (9.52)
4.2kW CS-TZ42TKEW-1 4.20 / 3610 5.00 / 4300 4 x 1.5 44 / 33 / 31 — 46 / 37 / 30 290 x 799 x 197 / 8 1/4 (6.35) / 1/2 (12.70)
5.0kW CS-TZ50TKEW 5.00 / 4300 5.30 / 4 558 4 x 1.5 44 / 39 / 36 — 46 / 39 / 36 302 x 1 102 x 244 / 12 1/4 (6.35) / 1/2 (12.70)
 6.0kW  CS-TZ60TKEW  6.00 / 5 160  8.50 / 7 310  4 x 1.5  44 / 39 / 36 — 47 / 39 / 36  302 x 1 102 x 244 / 12 1/4 (6.35) / 5/8 (15.88)
7.1kW CS-TZ71TKEW 7.10 / 6110 8.90 / 7 654 49 / 40 / 37 — 49 / 40 / 37 302 x 1 102 x 244 / 13 1/4 (6.35) / 5/8 (15.88)

Additional information

Wall Mounted - TZ Indoor Units

Up to 20 sq.m. room – CS-TZ20TKEW, Up to 25 sq.m. room – CS-TZ25TKEW, Up to 30 sq.m. room – CS-TZ35TKEW, Up to 40 sq.m. room – CS-TZ42TKEW, Up to 50 sq.m. room – CS-TZ50TKEW, Up to 60 sq.m. room – CS-TZ60TKEW, Up to 70 sq.m. room – CS-TZ71TKES
