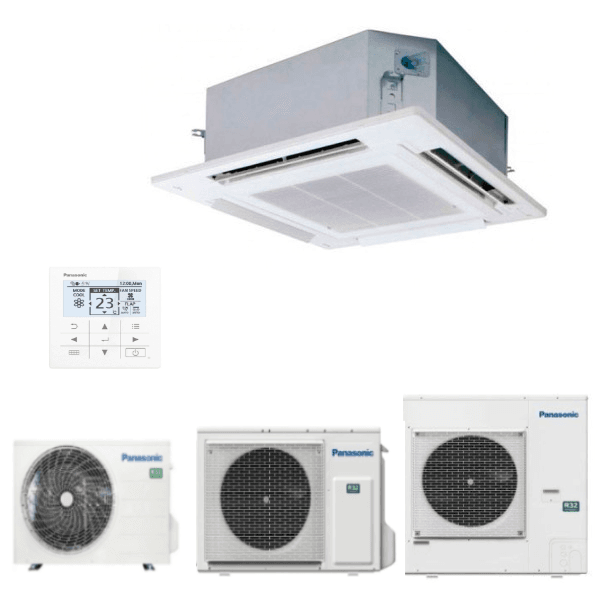

PACi NX Series Standard 4 Way 90×90 Cassette Inverter – Single Phase R32

£901.76 - £2,147.84 ex. VAT

Clear

Note: All systems must be installed by Certified Installer.

Description

Single Phase
3.6kW5.0kW6.0kW7.1kW10.0kW12.5kW14.0kW
KitKIT-36PU3Z5KIT-50PU3Z5KIT-60PU3Z5KIT-71PU3Z5KIT-100PU3Z5KIT-125PU3Z5KIT-140PU3Z5
Remote controllerCZ-RTC5BCZ-RTC5BCZ-RTC5BCZ-RTC5BCZ-RTC5BCZ-RTC5BCZ-RTC5B
Cooling capacityNominal (Min – Max)kW3.6(1.5-4.0)5.0(1.5-5.6)6.0(2.0-7.1)7.1(2.6-7.7)10.0(3.0-11.5)12.5(3.2-13.5)14.0(3.3-15.0)
UK Cooling(Total – Sensible)kW3.4 – 2.64.8 – 3.35.9 – 4.16.7 – 4.4TBCTBCTBC
EERNominal (Min – Max)W/W4.343.913.733.273.82(5.36-2.88)3.58(5.33-2.81)3.23(5.32-2.73)
SEER8.1 A++8.0 A++7.8 A++6.8 A++6.8 A++6.86.5
PdesignkW3.65.06.07.110.012.514.0
Input power coolingNominal (Min – Max)kW0.831.281.612.172.62(0.6-4.0)3.49(0.6-4.8)4.34(0.6-5.5)
Annual energy consumptionkWh/a156219269365515
Heating capacityNominal (Min – Max)kW3.6(1.5-4.6)5.0(1.5-6.4)6.0(1.8-7.0)7.1(2.1-8.1)10.0(3.0-14.0)12.5(3.3-15.0)14.0(3.4-16.0)
UK HeatingkW3.95.66.26.9TBCTBCTBC
COPNominal (Min – Max)W/W5.074.634.484.234.93(3.59-5.36)4.43(3.57-5.50)4.18(3.33-5.48)
SCOP4.8 A++4.7 A++4.9 A++4.6 A++4.4 A+4.03.9
Pdesign at -10°CkW2.84.04.65.210.012.514.0
Input power heatingNominal (Min – Max)kW0.711.081.341.682.03(0.56-3.90)2.82(0.60-4.20)3.35(0.62-4.80)
Annual energy consumptionkWh/a8171191131415833182
Indoor unitS-3650PU3ES-3650PU3ES-6071PU3ES-6071PU3ES-1014PU3ES-1014PU3ES-1014PU3E
Air volumeHi / Med / Lom³/min14.5/13.0/11.516.5/13.5/11.521.0/16.0/13.022.0/16.0/13.036.0/26.0/18.037.0/27.0/19.038.0/29.0/20.0
Moisture removal volumeL/h0.71.61.72.52.74.86.0
Sound pressureHi / Med / LodB(A)30/28/2732/29/2736/31/2837/31/2845/38/3246/39/3347/40/34
Sound powerHi / Med / LodB45/43/4247/44/4251/46/4352/46/4360/53/4761/54/4862/55/49
DimensionIndoor (H x W x D)mm256x840x840256x840x840256x840x840256x840x840319x840x840319x840x840319x840x840
Panel (H x W x D)mm33.5x950x95033.5x950x95033.5x950x95033.5x950x95033.5x950x95033.5x950x95033.5x950x950
Net weightIndoor / Panelkg19 / 519 / 520 / 520 / 525 / 525 / 525 / 5
nanoe™ XMark1Mark1Mark1Mark1Mark1Mark1Mark1
Outdoor unitU-36PZ3E5U-50PZ3E5U-60PZ3E5U-71PZ3E5U-100PZ3E5U-125PZ3E5U-140PZ3E5
Power sourceV220-230-240220-230-240220-230-240220-230-240220-230-240220-230-240220-230-240
CurrentCoolA3.85-3.70-3.555.95-5.70-5.457.45-7.15-6.8510.00-9.65-9.2512.10-11.50-11.1016.30-15.60-15.0020.40-19.50-18.70
HeatA3.35-3.20-3.055.05-4.85-4.656.20-5.95-5.707.80-7.45-7.159.25-8.85-8.5013.10-12.50-12.0015.60-14.90-14.30
Air volumeCool / Heatm³/min33.6/34.032.7/31.942.6/41.544.7/45.976/7086/7889/83
Sound pressureCool / Heat (Hi)dB(A)46 / 4746 / 4647 / 4848 / 4952 / 5255 / 5556 / 56
Sound powerCool / Heat (Hi)dB64 / 6664 / 6464 / 6566 / 6870 / 7073 / 7374 / 74
DimensionH x W x Dmm619x824x299619x824x299695x875x320695x875x320996x980x370996x980x370996x980x370
Net weightkg32354250909494
Piping connectionsLiquid pipeInch (mm)1/4(6.35)1/4(6.35)1/4(6.35)1/4(6.35)3/8(9.52)3/8(9.52)3/8(9.52)
Gas pipeInch (mm)1/2(12.70)1/2(12.70)1/2(12.70)5/8(15.88)5/8(15.88)5/8(15.88)5/8(15.88)
Pipe length rangem3 ~ 153 ~ 203 ~ 303 ~ 405 ~ 505 ~ 505 ~ 50
Elevation difference (in/out)m15 / 1515 / 1515 / 1520 / 20303030
Pipe length for additional gasm7.57.57.510303030
Additional gas amountg/m10151517454545
Refrigerant (R32) / CO2 Eq.kg / T0.87/0.591.14/0.771.15/0.781.32/0.892.60/1.762.98/2.012.98/2.01
Operating rangeCool Min ~ Max°C-10 ~ +43-10 ~ +43-10 ~ +43-10 ~ +43-10 ~ +43-10 ~ +43-10 ~ +43
Heat Min ~ Max°C-15 ~ +24-15 ~ +24-15 ~ +24-15 ~ +24-15 ~ +24-15 ~ +24-15 ~ +24

Additional information

PACi NX Series Standard 4 Way 90x90 Cassette Inverter - Single Phase R32

Up to 100 sq.m. room – S-1014PU3E U-100PZ3E5, Up to 120 sq.m. room – S-1014PU3E U-125PZ3E5, Up to 140 sq.m. room – S-1014PU3E U-140PZ3E5, Up to 35 sq.m. room – S-3650PU3E U-36PZ3E5, Up to 50 sq.m. room – S-3650PU3E U-50PZ3E5, Up to 60 sq.m. room – S-6071PU3E U-60PZ3E5, Up to 70 sq.m. room – S-6071PU3E U-71PZ3E5
