Description

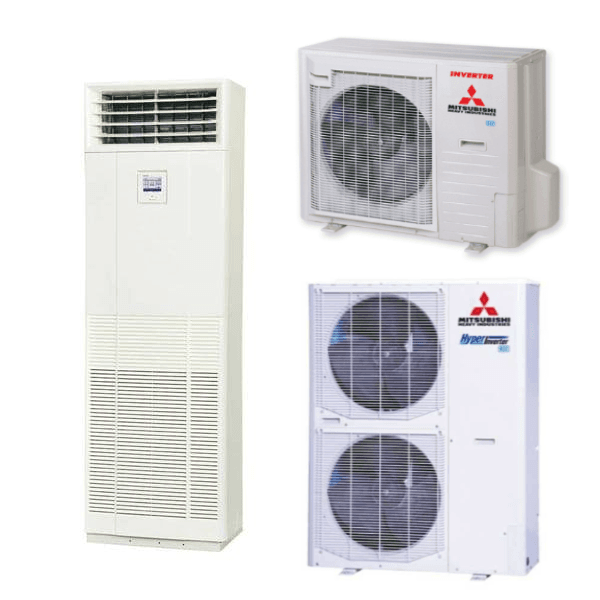

| Indoor unit | FDF71VD1 | FDF100VD2 | FDF125VD | FDF140VD | |||
| Outdoor unit | FDC71VNX | FDC100VNX | FDC125VNX | FDC140VNX | |||
| Power source | 1 Phase 220-240V, 50Hz / 220V, 60Hz | ||||||
| Nominal cooling capacity (Min~Max) | kW | 7.1 ( 3.2 ~ 8.0 ) | 10.0 ( 4.0 ~ 11.2 ) | 12.5 ( 5.0 ~ 14.0 ) | 14.0 ( 5.0 ~ 16.0 ) | ||
| Nominal heating capacity (Min~Max) | kW | 8.0 ( 3.6 ~ 9.0 ) | 11.2 ( 4.0 ~ 12.5 ) | 14.0 ( 4.0 ~ 17.0 ) | 16.0 ( 4.0 ~ 18.0 ) | ||
| Power consumption | Cooling/Heating | kW | 2.21 / 2.21 | 2.83 / 3.04 | 3.89 / 3.88 | 4.65 / 4.69 | |
| EER/COP | Cooling/Heating | 3.21 / 3.62 | 3.53 / 3.68 | 3.21 / 3.61 | 3.01 / 3.41 | ||
| Inrush current | A | 5 | 5 | 5 | 5 | ||
| Max. current | 17 | 24 | 26 | 26 | |||
| Sound power level*1 | Indoor | Cooling/Heating | dB(A) | 61 / 61 | 65 / 65 | 73 / 73 | 73 / 73 |
| Outdoor | Cooling/Heating | 66 / 66 | 70 / 70 | 70 / 70 | 72 / 72 | ||
| Sound pressure level*1 1 | Indoor | Cooling (Hi/Me/Lo) | 39 / 35 / 33 | 50 / 48 / 44 | 50 / 48 / 44 | 50 / 48 / 44 | |
| Heating (Hi/Me/Lo) | 39 / 35 / 33 | 50 / 48 / 44 | 50 / 48 / 44 | 50 / 48 / 44 | |||
| Outdoor | Cooling/Heating | 51 / 48 | 48 / 50 | 48 / 50 | 49 / 52 | ||
| Air flow 1 | Indoor | Cooling (Hi/Me/Lo) | m3/min | 18 / 16 / 14 | 26 / 23 / 19 | 26 / 23 / 19 | 26 / 23 / 19 |
| Heating (Hi/Me/Lo) | 18 / 16 / 14 | 26 / 23 / 19 | 26 / 23 / 19 | 26 / 23 / 19 | |||
| Outdoor | Cooling/Heating | 60 / 50 | 100 / 100 | 100 / 100 | 100 / 100 | ||
| Exterior dimensions | Indoor | HeightxWidthxDepth | mm | 1,850 x 600 x 320 | |||
| Outdoor | 750 x 880(+88) x 340 | 1,300 x 970 x 370 | |||||
| Net weight | Indoor | kg | 49 | 52 | |||
| Outdoor | 60 | 105 | |||||
| Ref.piping size | Liquid/Gas | ømm | 9.52(3/8″) / 15.88(5/8″) | ||||
| Refrigerant line (one way) length | m | Max.50 | Max.100 | ||||
| Vertical height differences | Outdoor is higher/lower | m | Max.30 / Max.15 | ||||
| Outdoor operating temperature range | Cooling | °C | -15~43*3 | ||||
| Heating | -20~20 | ||||||
| Air filter, Q’ty | Plastic net x 1(washable) | ||||||
| Remote control | wired:RC-E5 (installed) wireless:RCN-KIT4-E2 (option) | ||||||
