Ceiling Suspended Split Systems (3Phase) R32

Compare

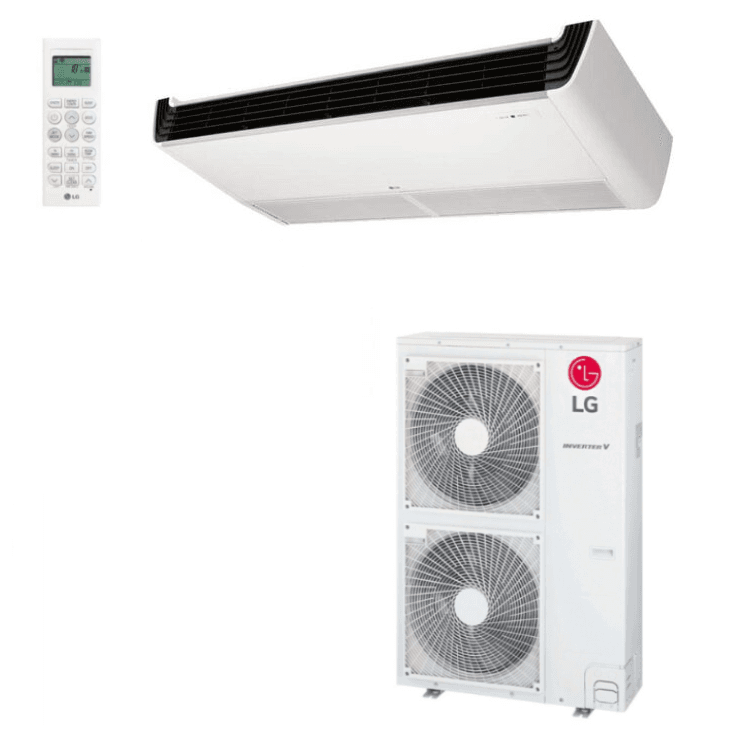

  • Full Systems (Indoor + Outdoor Units + Remote Controller)

From: £1,580.25 - £2,266.50 ex. VAT

Clear

Description

Indoor Units UV36R N20 UV42R.N20 UV48R.N20 UV60R.N20
Capacity Cooling Min/Nom/Max kW 4.5 / 9.5 / 13.0 5.0 / 12.0 / 14.5 5.5 / 13.4 / 16.0 5.7 / 14.4 / 15.7
Heating Min/Nom/Max kW 5.0 / 10.8 / 13.7 5.5 / 13.5 / 16.5 6.1 / 15.5 / 18.0 6.8 / 16.8 / 18.7
Low Temperature Capacity Heating -7°C Max kW 9,4 12,5 14,3 15,2
Power Input (Set) Cooling Nom kW 2,30 3,65 4,15 4,90
Heating Nom kW 2,75 4,00 4,90 5,55
Power Input (Indoor) Min/Max W 30 / 180 30 / 180 30 / 180 30 / 180
Running Current Cooling/Heating Nom A 10.0 / 12.0 5.6 / 5.3 6.0 / 7.1 7.1 / 8.0
Power Supply Ø/V/Hz 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50
EER 4,13 3,21 3,11 2,94
COP 3,93 3,37 3,41 3,03
SEER 5,62 5,5 5,45
SCOP 4,04 4,0 3,92
Pdesign (@-10°C) kW 8,05 8,05 9,3
Seasonal Energy Label Cooling / Heating A+ / A+ A / A+
Annual Energy Consumption Cooling / Heating kWh 594 / 2,800 764 / 2,800 1,459 / 3,288 1,651 / 3,321
Piping Connection Liquid mm (inch) Ø 9.52 (3/8) Ø 9.52 (3/8) Ø 9.52 (3/8) Ø 9.52 (3/8)
Gas mm (inch) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8)
Drain O.D. / I.D.                 mm 21.5 / 16.0 21.5 / 16.0 21.5 / 16.0 21.5 / 16.0
Air Flow Rate High / Medium / Low  m3/min 28.0 / 24.0 / 20.0 28.0 / 24.0 / 20.0 30.0 / 25.0 / 20.0 30.0 / 25.0 / 20.0
Sound Pressure Cooling High / Medium / Low  dBA 46 / 43 / 40 46 / 43 / 40 48 / 44 / 40 48 / 44 / 40
Sound Power Cooling Max                       dBA 63 63 63 63
Dehumidification Rate l/h 3,8 5,8 6,3 7,1
Dimensions Body W x H x D                mm 1,600 x 690 x 235 1,600 x 690 x 235 1,600 x 690 x 235 1,600 x 690 x 235
Net Weight Body kg 36,5 36,5 36,5 36,5
Outdoor Units UU37WR.U30 UU43WR.U30 UU49WR.U30 UU61WR.U30
Power Supply V , Ø , Hz 380-415 , 3 , 50 380-415 , 3 , 50 380-415 , 3 , 50 380-415 , 3 , 50
Power Factor Rated 0,98 0,98 0,98 0,98
Power Supply Cable (included Earth) No. x mm² 5C x 2.5 5C x 2.5 5C x 2.5 5C x 2.5
Casing Color Warm Gray Warm Gray Warm Gray Warm Gray
Dimensions Net W x H x D mm 950 x 1,380 x 330 950 x 1,380 x 330 950 x 1,380 x 330 950 x 1,380 x 330
Weight Net kg 87,5 87,5 87,5 87,5
Compressor  Type LG Inverter Scroll LG Inverter Scroll LG Inverter Scroll LG Inverter Scroll
Refrigerant Type R32 R32 R32 R32
GWP (Global Warming Potential) g 675 675 675 675
Precharged Amount 3 000 3 000 3 000 3 000
t-CO2 eq 2,025 2,025 2,025 2,025
Control m Electronic Expansion Valve
Chargeless-Pipe Length g/m 7,5 7,5 7,5 7,5
Additional Charging Volume 40 40 40 40
Heat Exchanger                      (Row x Column x FPI) x No. (2 x 32 x 14) x 2 (2 x 32 x 14) x 2 (2 x 32 x 14) x 2 (2 x 32 x 14) x 2
Fan Type Propeller Propeller Propeller Propeller
Air Flow Rate Rated m³/min x No. 55 x 2 55 x 2 55 x 2 55 x 2
Fan Motor Type BLDC BLDC BLDC BLDC
Output W x No. 124 x 2 124 x 2 124 x 2 124 x 2
Sound Pressure Level Cooling Rated dB(A) 52 52 52 52
Heating Rated dB(A) 54 54 54 54
Sound Power Level Cooling Rated dB(A) 66 67 68 68
Heating Rated dB(A) 70 71 72 72
Piping Connections Liquid Outer Dia. mm (inch) Ø 9.52(3/8) Ø 9.52(3/8) Ø 9.52(3/8) Ø 9.52(3/8)
Gas Outer Dia. mm (inch) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8)
Piping Length Min~Max m 5-85 5-85 5-85 5-85
Maximum Height Difference (ODU ~ IDU) Max. m 30 30 30 30

Additional information

CEILING SUSPENDED R32 3PH

, , ,
