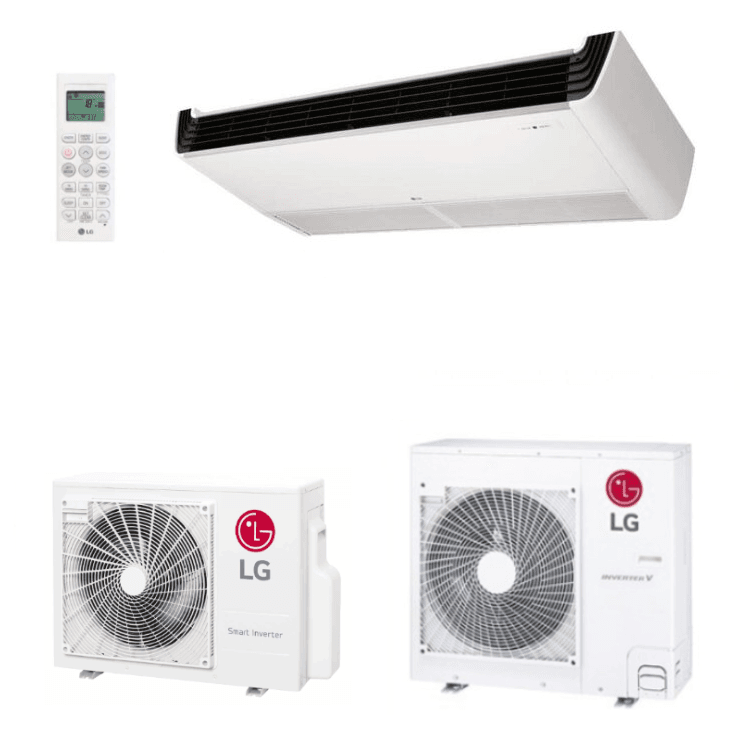

Ceiling Suspended Split Systems (1Phase) R32

Compare
  • Full Systems (Indoor + Outdoor Units + Remote Controller)

From: £1,035.00 - £2,266.50 ex. VAT

Clear

Description

Indoor Units UV18R N10 UV24R N10 UV36R N20 UV42R.N20 UV48R.N20 UV60R.N20
Capacity Cooling Min/Nom/Max kW 1.9 / 5.0 / 6.0 2.8 / 6.8 / 7.5 4.5 / 9.5 / 13.0 5.0 / 12.0 / 14.5 5.5 / 13.4 / 16.0 5.7 / 14.4 / 15.7
Heating Min/Nom/Max kW 2.0 / 5.2 / 6.3 3.0 / 7.5 / 8.3 5.0 / 10.8 / 13.7 5.5 / 13.5 / 16.5 6.1 / 15.5 / 18.0 6.8 / 16.8 / 18.7
Low Temperature Capacity Heating -7°C  Max kW 4,6 6,9 9,4 12,5 14,3 15,2
Power Input (Set) Cooling Nom kW 1,38 1,97 2,30 3,65 4,15 4,90
Heating Nom kW 1,52 2,20 2,75 4,00 4,90 5,55
Power Input (Indoor) Min/Max  W 20 / 25 40 / 60 30 / 180 30 / 180 30 / 180 30 / 180
Running Current Cooling/Heating Nom A 6.1 / 6.7 8.7 / 9.8 10.0 / 12.0 16.9 / 16.0 18.0 / 21.3 21.3 / 24.1
Power Supply Ø/V/Hz 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50
EER 3,62 3,45 4,13 3,28 3,23 2,94
COP 3,42 3,40 3,93 3,37 3,16 3,03
SEER 6,50 7,10 5,62 5,5 5,51 5,45
SCOP 4,30 4,30 4,04 4,0 3,96 3,92
Pdesign (@-10°C) kW 4,1 5,4 8,05 8,05 9,3 9,3
Seasonal Energy Label Cooling / Heating(A++ to E Scale) A++ / A+ A++ / A+ A+ / A+ A / A+
Annual Energy Consumption Cooling / Heating kWh 269 / 1,335 335 / 1,758 594 / 2,800 764 / 2,800 1,459 / 3,288 1,651 / 3,321
Piping Connection Liquid mm (inch) Ø 6.35 (1/4) Ø 9.52 (3/8) Ø 9.52 (3/8) Ø 9.52 (3/8) Ø 9.52 (3/8) Ø 9.52 (3/8)
Gas mm (inch) Ø 12.7 (1/2) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8)
Drain O.D. / I.D. mm 21.5 / 16.0 21.5 / 16.0 21.5 / 16.0 21.5 / 16.0 21.5 / 16.0 21.5 / 16.0
Air Flow Rate High/Medium/Low m3/min 13.0 / 12.0 / 11.0 16.0 / 15.0 / 14.0 28.0 / 24.0 / 20.0 28.0 / 24.0 / 20.0 30.0 / 25.0 / 20.0 30.0 / 25.0 / 20.0
Sound Pressure Cooling High/Medium/Low dBA 42 / 40 / 39 44 / 43 / 41 46 / 43 / 40 46 / 43 / 40 48 / 44 / 40 48 / 44 / 40
Sound Power Cooling Max dBA 55 61 63 63 63 63
Dehumidification Rate l/h 1,9 3,0 3,8 5,8 6,3 7,1
Dimensions Body W x H x D mm 1,200x235x690 1,200x235x690 1,600x690x235 1,600x690x235 1,600x690x235 1,600x690x235
Net Weight Body kg 27,3 28,0 36,5 36,5 36,5 36,5
Outdoor Units UU18WR U20 UU24WR U40 UU36WR.U30 UU42WR.U30 UU48WR.U30 UU60WR.U30
Power Supply V , Ø , Hz 220-240 , 1 , 50 220-240 , 1 , 50 220-240 , 1 , 50 220-240 , 1 , 50 220-240 , 1 , 50 220-240 , 1 , 50
Power Factor Rated 0,98 0,98 0,98 0,98 0,98 0,98
Power Supply Cable (included Earth) No. x mm² 3C × 2.5 3C × 2.5 3C x 6.0 3C x 6.0 3C x 6.0 3C x 6.0
Casing Color Warm Gray Warm Gray Warm Gray Warm Gray Warm Gray Warm Gray
Dimensions Net W x H x D mm 870x650x330 950×834×330 950×1,380×330 950×1,380×330 950×1,380×330 950×1,380×330
Weight Net kg 44,8 56,1 87,5 87,5 87,5 87,5
Compressor  Type Twin Rotary Twin Rotary LG Inverter Scroll LG Inverter Scroll LG Inverter Scroll LG Inverter Scroll
Refrigerant Type R32 R32 R32 R32 R32 R32
GWP (Global Warming Potential) 675 675 675 675 675 675
Precharged Amount g 1 100 1 600 3 000 3 000 3 000 3 000
t-CO2eq. 0,74 1,08 2,03 2,03 2,03 2,03
Control Electronic Expansion Valve
Chargeless-Pipe Length m 7,5 7,5 7,5 7,5 7,5 7,5
Additional Charging Volume g/m 20 35 40 40 40 40
Heat Exchanger (Row x Column x FPI) x No. (2 × 28 × 14) × 1 (2 × 38 × 14) × 1 (2 x 32 x 14) x 2 (2 x 32 x 14) x 2 (2 x 32 x 14) x 2 (2 x 32 x 14) x 2
Fan Type Axial Axial Propeller Propeller Propeller Propeller
Air Flow Rate Rated  m³/minxNo. 50 × 1 58 × 1 55 x 2 55 x 2 55 x 2 55 x 2
Sound Pressure Level Cooling Rated dB(A) 47 48 52 52 52 52
Heating Rated dB(A) 52 52 54 54 54 54
Sound Power Level Cooling Rated dB(A) 63 67 66 67 68 68
Heating Rated dB(A) 70 71 72 72
Piping Connections Liquid Outer Dia. mm (inch) Ø 6.35 (1/4) Ø 9.52(3/8) Ø 9.52(3/8) Ø 9.52(3/8) Ø 9.52(3/8) Ø 9.52(3/8)
Gas Outer Dia. mm (inch) Ø 12.7 (1/2) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8) Ø 15.88 (5/8)
Piping Length Min-Max m 5.0 – 30 5.0 – 50 5 – 85 5 – 85 5 – 85 5 – 85
Maximum Height Difference (ODU ~ IDU) Max. m 30 30 30 30 30 30

Additional information

CEILING SUSPENDED R32 1PH

, , , , ,
