Sale!

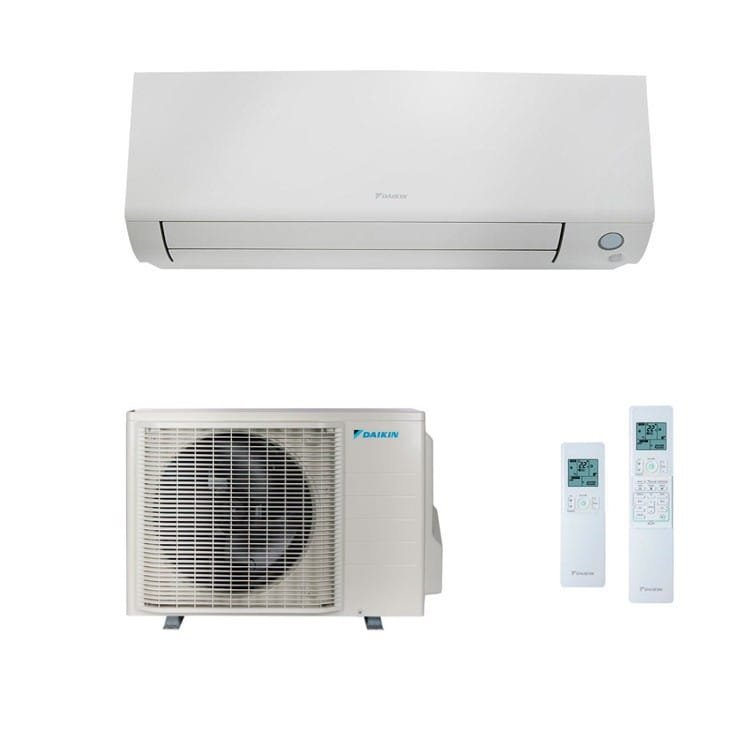

Wall Mounted Split Systems – Standard Inverter R32

Compare

From: £527.00 - £1,258.00 ex. VAT

Clear

Description

Indoor Units FTXM20M FTXM25M FTXM35M FTXM42M FTXM50M FTXM60M FTXM71M
Capacity UK Total Cooling kW 1,95 2,44 3,42 4,11 4,56 5,76 6,94
UK Sensible Cooling kW 1,65 1,82 2,56 2,85 3,14 3,39 4,72
Nominal Cooling kW 2,0 2,5 3,5 4,2 5,0 6,0 7,1
Nominal Heating kW 2,5 3,4 4,0 5,4 5,8 7,0 8,2
Seasonal Efficiency (EN14825) COOLING Energy Label A+++ A+++ A+++ A++ A++ A++ A++
Pdesign kW 2,0 2,5 3,4 4,2 5,0 6,0 6,8
SEER 8,53 8,52 8,51 7,50 7,33 6,90 6,11
Annual Energy Consumption kWh 83 103 140 196 239 304 390
Seasonal Efficiency (EN14825) HEATING Energy Label A+++ A+++ A+++ A++ A++ A+ A
Pdesign kW 2,3 2,4 2,5 4,0 4,6 4,6 6,2
SCOP 5,10 5,10 5,10 4,60 4,60 4,60 6,20
Annual Energy Consumption kWh 632 659 686 1217 1400 1498 2278
Nominal Efficiency EER/COP 4.57 / 5.00 4.50 / 5.00 4.23 / 4.04 3.75 / 4.12 3.68 / 4.00 3.39 / 3.61 3.03 / 3.19
Air Flow Rate (Cooling) High / Nom / Low / Silent m3/sec 0.185 / – / 0.100 / 0.073 0.185 / – / 0.103 / 0.073 0.210 / – / 0.107 / 0.077 0.210 / – / 0.118 / 0.077 0.275 / – / 0.193 / 0.172 0.285 / – / 0.200 / 0.178 0.285 / – / 0.200 / 0.178
Dimensions Height mm 294 294 294 294 300 300 300
Width mm 811 811 811 811 1040 1040 1040
Depth mm 272 272 272 272 295 295 295
Weight kg 10 14,5
Sound Pressure (Cooling) High / Nom / Low / Silent dBA 41 / – / 25 / 19 41 / – / 25 / 19 45 / – / 29 / 19 45 / – / 30 / 21 46 / – / 37 / 34 46 / – / 37 / 34 47 / – / 38 / 35
Sound Pressure (Heating) High / Nom / Low / Silent dBA 39 / – / 26 / 20 39 / – / 27 / 20 39 / – / 28 / 20 45 / – / 29 / 21 43 / – / 34 / 31 45 / – / 36 / 33 46 / – / 37 / 34
Sound Power (Cooling) dBA 57 57 60 60 59 60 60
Outdoor Units RXM20M9 RXM25M9 RXM35M9 RXM42M9 RXM50M9 RXM60M9 RXM71M
Dimensions Height x Width x Depth mm 550 x 765 x 285 735 x 825 x 300 735 x 870 x 320
Weight kg 32 32 32 47 47 47 47
Electrical Details Power Supply 1ph 1ph
Running Current A 9,88 10,82 10,86 11,42 11,65 13,53
Max Fuse Size A 10 10 10 10 15 15 20
Interconnection Wiring       Core / Cable size 3+E / 1.5 3+E / 2.5 3+E / 2.5
Piping Connections Liquid / Gas inches (mm) 1/4(6.4)/3/8(9.5) 1/4(6.4)/1/2(12.7) 1/4(6.4)/5/8(15.7)
Pipework Maximum Length m 20 20 20 30 30 30 30
Maximum Vertical Rise m 20 20 20 20 20 20 20
Precharged to m 10 10 10 10 10 10 10
Additional Charge g/m 20 20 20 20 20 20 20
Holding Charge kg 0,76 0,76 0,76 1,30 1,40 1,45 1,70
Sound Pressure (Cooling)    Nominal dBA 46 46 49 48 48 48
Sound Pressure (Heating)    Nominal dBA 47 47 49 48 49 49
Sound Power (Cooling) dBA 59 59 61 62 62 63 64
Operating Range (Cooling)   Min / Max °CDB -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46 -10 / 46
Operating Range (Heating)  Min / Max °CWB -15 / 18 -15 / 18 -15 / 18 -15 / 18 -15 / 18 -15 / 18 -15 / 18
Air Flow Rate (Cooling)        High m3/sec 0,600 0,600 0,600 0,848 0,840 0,840 1,122
