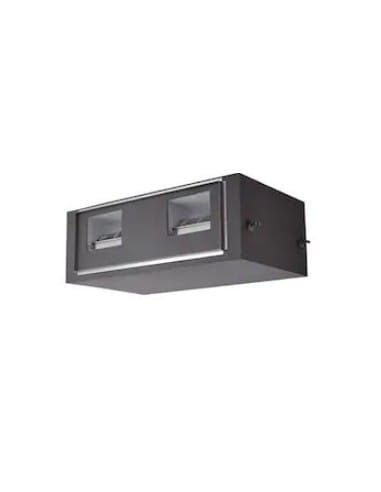

Outdoor Air Processing(OAP) Unit

From: £1,471.00£2,660.00 ex. VAT

Clear

Note: All systems must be installed by Certified Installer.

Description

ModelAM140JNEPEH/EUAM220JNEPEH/EUAM280JNEPEH/EU
Power SupplyΦ, #, V, Hz1,2,220-240,501,2,220-240,501,2,220-240,50
ModeHPHPHP
PerformanceCapacityCoolingkW14.028.028.0
Btu/h
HeatingkW8.917.417.4
Btu/h
Condensate (with High fan speed)Liters/h
PowerInputW220300370
Running CurrentA1.62.23.0
Sound LevelSound Pressure (High/Low)dB(A)485256
FanTypeSirocco FanSirocco FanSirocco Fan
MotorModel
TypeBLDCBLDCBLDC
OutputΈ
Airflow RateH/M/Lm3/min182850
External PressureMin/Std/Max202530
RefrigerantTypeR410AR410AR410A
Control Method͞EEVEEVEEV
Temperature ControlMicom&ThermistorsMicom&ThermistorsMicom&Thermistors
Safety DevicesFuseFuseFuse
Piping ConnectionsLiquid (Flare)ø, mm9.529.529.52
Gas (Flare)ø, mm15.8822.2222.22
Drainø, mmVP25 (OD 32,ID 25)VP25 (OD 32,ID 25)VP25 (OD 32,ID 25)
WeightNet Weightkg518585
Shipping Weightkg619595
DimensionsNet Dimensions (W x H x D)1110x390x6501240x470x10401240x470x1040
Shipping Dimensions (W x H x D)1335x512x8291507x558x11551507x558x1155
Optional
Accessories
DMS 2.0MIM-D00ANMIM-D00ANMIM-D00AN
Wired Remote ControllerSimplifiedMWR-WE10NMWR-WE10NMWR-WE10N
EHSMWR-WW00NMWR-WW00NMWR-WW00N
External Contact Interface ModuleMIM-B14MIM-B14MIM-B14
Drain PumpMDP-N047SNC0DADP-N047SNC1DADP-N047SNC1D

Additional information

Outdoor Air Processing(OAP) Unit VRF

Up to 140 sq.m. room – AM140JNEPEH/EU, Up to 220 sq.m. room – AM220JNEPEH/EU, Up to 280 sq.m. room – AM280JNEPEH/EU
