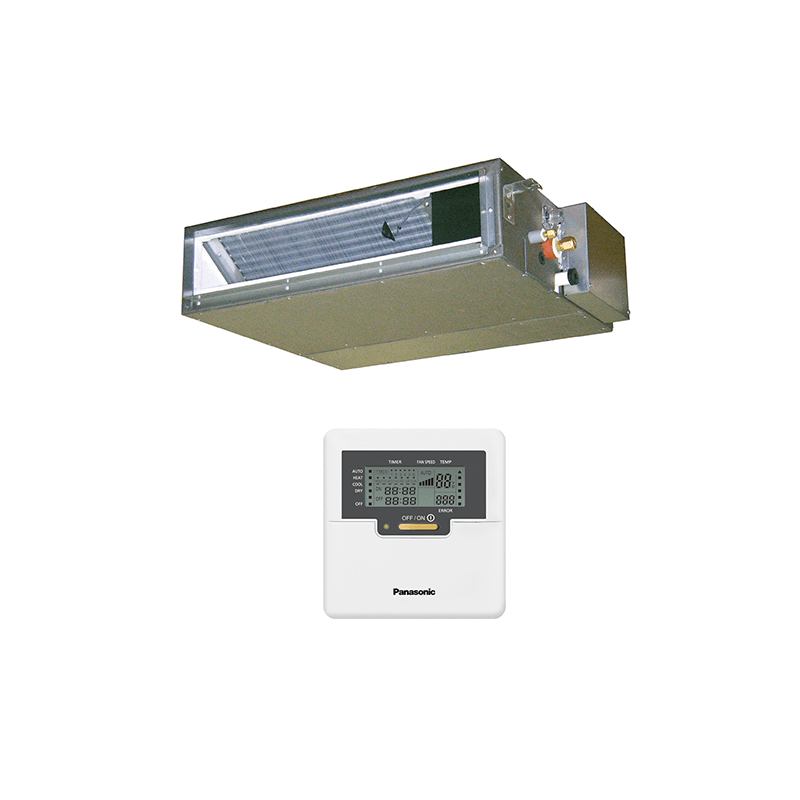

Low Static Pressure Hide Away Indoor Units R32

Compare

From: £309.00 - £522.00 ex. VAT

Clear

Description

Low Static Pressure Hide Away Indoor Cooling capacity Heating capacity Connection Sound pressure
Cool—Heat(Hi/Lo/S-Lo)
Dimension / Net weight
H x W x D
Piping connections
Liquid / Gas pipe
kW / kCal/h kW / kCal/h mm dB(A) mm / kg Inch (mm)
2.0kW CS-MZ20UD3EA 2.00 / 1720 3.20 / 2750 4 x 1.5 200 x 750 x 640 / 19
2.5kW CS-Z25UD3EAW 2.50 / 2150 3.60 / 3100 4 x 1.5 to 2.5 33 / 27 / 24 — 35 / 27 / 24 200 x 750 x 640 / 19 1/4 (6.35) / 3/8 (9.52)
3.5kW² CS-Z35UD3EAW 3.50 / 3010 4.50 / 3870 4 x 1.5 to 2.5 33 / 27 / 24 — 35 / 27 / 24 200 x 750 x 640 / 19 1/4 (6.35) / 3/8 (9.52)
5.0kW CS-Z50UD3EAW 5.00 / 4300 5.30 / 4558 4 x 1.5 to 2.5 39 / 29 / 26 — 39 / 30 / 27 200 x 750 x 640 / 19 1/4 (6.35) / 1/2 (12.70)
6.0kW CS-Z60UD3EAW 6.00 / 5160 8.50 / 7310 4 x 1.5 to 2.5 41 / 30 / 27 — 41 / 32 / 29 200 x 750 x 640 / 19 1/4 (6.35) / 1/2 (12.70)

Additional information

Low Static Pressure Hide Away Indoor Units

, , , ,
