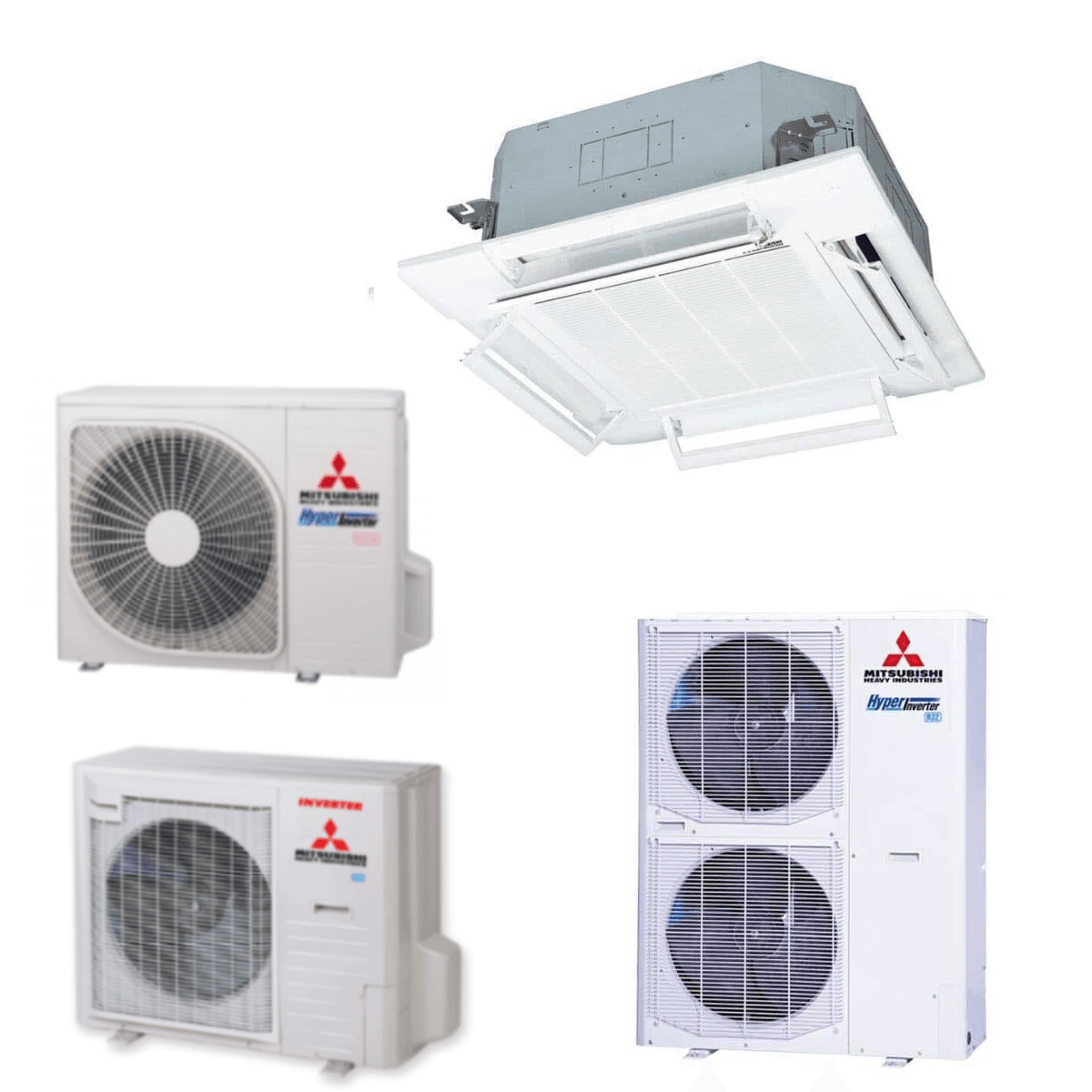

FDT-VG Hyper Inverter Cassette 1Phase

Compare

From: £934.50 - £2,144.25 ex. VAT

Clear

Description

Indoor unit   FDT40VG FDT50VG FDT60VG FDT71VG FDT100VG FDT125VG FDT140VG
Outdoor unit   SRC40ZSX-S SRC50ZSX-S SRC60ZSX-S FDC71VNX FDC100VNX FDC125VNX FDC140VNX
Power source 1 Phase 220-240V, 50Hz / 220V, 60Hz
Nominal cooling capacity (Min~Max) kW 4.0 (1.1~4.7) 5.0 (1.1~5.6 ) 5.6 (1.1~6.3) 7.1 (3.2~8.0) 10.0 (4.0~11.2) 12.5 (5.0~14.0) 14.0 (5.0~16.0)
Nominal heating capacity (Min~Max) kW 4.5 (0.6~5.4) 5.4 (0.6~6.3) 6.7 (0.6~7.1) 8.0 (3.6~9.0) 11.2 (4.0~12.5) 14.0 (4.0~17.0) 16.0 (4.0~18.0)
Power consumption Cooling/Heating kW 0.93 / 1.03 1.29 / 1.29 1.52 / 1.56 1.94 / 1.91 2.50 / 2.58 3.42 / 3.43 4.26 / 4.20
EER/COP Cooling/Heating 4.30 / 4.37 3.88 / 4.19 3.68 / 4.29 3.66 / 4.19 4.00 / 4.34 3.65 / 4.08 3.29 / 3.81
Inrush current A 5 5 5 5 5 5 5
Max. current 12 15 15 17 24 26 26
Sound power level*1 Indoor Cooling/Heating dB(A) 53 / 53 54 / 54 60 / 60 62 / 62 63 / 63 64 / 64 64 / 64
Outdoor Cooling/Heating 63 / 63 63 / 63 65 / 64 66 / 66 70 / 70 70 / 70 72 / 72
Sound pressure level*1    1 Indoor Cooling (Hi/Me/Lo) 33 / 30 / 27 33 / 30 / 27 34 / 32 / 28 35 / 34 / 29 39 / 37 / 31 41 / 39 / 32 42 / 39 / 33
Heating (Hi/Me/Lo) 33 / 30 / 27 33 / 30 / 27 34 / 32 / 28 35 / 34 / 29 39 / 37 / 31 41 / 39 / 32 42 / 39 / 33
Outdoor Cooling/Heating 50 / 49 50 / 49 52 / 52 51 / 48 48 / 50 48 / 50 49 / 52
Air flow    1
Indoor Cooling (Hi/Me/Lo) m3/min 16 / 13 / 10 16 / 13 / 10 17 / 14 / 11 18 / 15 / 12 26 / 23 / 17 28 / 25 / 18 29 / 26 / 19
Heating (Hi/Me/Lo) 16 / 13 / 10 16 / 13 / 10 17 / 14 / 11 18 / 15 / 12 26 / 23 / 17 28 / 25 / 18 29 / 26 / 19
Outdoor Cooling/Heating 36 / 33 39 / 33 41.5 / 39 60 / 50 100 / 100 100 / 100 100 / 100
Exterior dimensions Indoor HeightxWidthxDepth mm Unit: 236 x 840 x 840  Panel: 35 x 950 x 950 Unit: 298 x 840 x 840  Panel: 35 x 950 x 950
Outdoor 640 x 800(+71)x290 750×880(+88)x340 1,300x970x370
Net weight Indoor kg 24(Unit:19 Standard Panel:5) 26(Unit:21 Standard Panel:5) 30(Unit:25 Standard Panel:5)
Outdoor 45 60 105
Ref.piping size Liquid/Gas ømm 6.35(1/4″) / 12.7(1/2″) 9.52(3/8″)/15.88(5/8″) 9.52(3/8″) / 15.88(5/8″)
Refrigerant line (one way) length m Max.30 Max. 50 Max.100
Vertical height differences Outdoor is higher/lower m Max.20 / Max.20 Max.30 / Max.15 Max.30 / Max.15
Outdoor operating temperature range Cooling °C -15~46*3 -15~43*3 -15~43*3
Heating -20~24 -20~20
Panel T-PSA-5AW-E,  T-PSAE-5AW-E
Air filter, Q’ty Pocket plastic net x 1(Washable) Pocket plastic net x 1(Washable)
Remote control (option) wired:RC-EX3, RC-E5, RCH-E3  wireless:RCN-T-5AW-E2
