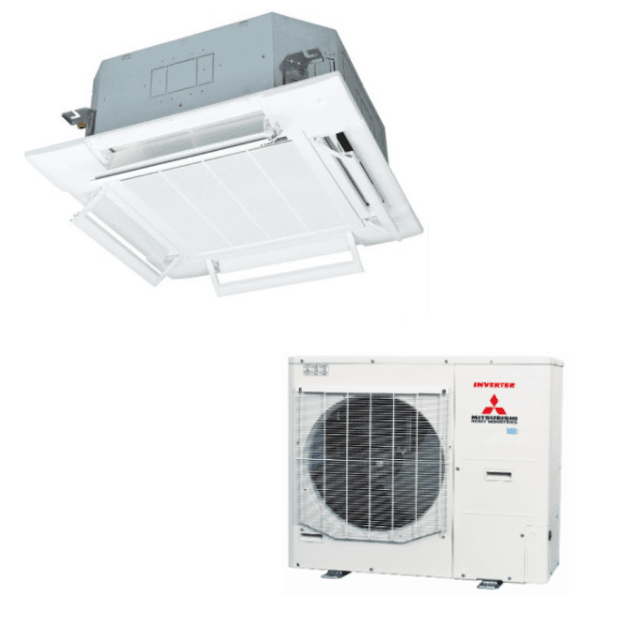

FDT-VG Micro Inverter Cassette 3Phase

Compare

From: £1,590.00 - £2,015.25 ex. VAT

Clear

Description

Indoor unitFDT100VGFDT125VGFDT140VG
Outdoor unit FDC100VSAFDC125VSAFDC140VSA
Power source3 Phase 380-415V, 50Hz / 380V, 60Hz
Nominal cooling capacity (Min~Max)kW10.0 ( 4.0 ~ 11.2 )12.5 ( 5.0 ~ 14.0 )14.0 ( 5.0 ~ 14.5 )
Nominal heating capacity (Min~Max)kW11.2 ( 4.0 ~ 12.5 )14.0 ( 4.0 ~ 16.0 )16.0 ( 4.0 ~ 16.5 )
Power consumptionCooling/HeatingkW2.76 / 2.744.05 / 3.774.98 / 4.57
EER/COPCooling/Heating3.62 / 4.093.09 / 3.712.81 / 3.50
Inrush currentA555
Max. current151515
Sound power level*1IndoorCooling/HeatingdB(A)63 / 6364 / 6464 / 64
OutdoorCooling/Heating70 / 7072 / 7273 / 73
Sound pressure level*1    2IndoorCooling (Hi/Me/Lo)39 / 37 / 3141 / 39 / 3242 / 39 / 33
Heating (Hi/Me/Lo)39 / 37 / 3141 / 39 / 3242 / 39 / 33
OutdoorCooling/Heating49 / 4950 / 5151 / 51
Air flow    2IndoorCooling (Hi/Me/Lo)m3/min26 / 23 / 1728 / 25 / 1829 / 26 / 19
Heating (Hi/Me/Lo)26 / 23 / 1728 / 25 / 1829 / 26 / 19
OutdoorCooling/Heating75 / 7375 / 7375 / 73
Exterior dimensionsIndoorHeightxWidthxDepthmmUnit: 298 x 840 x 840  Panel: 35 x 950 x 950
Outdoor845 x 970 x 370
Net weightIndoorkg30(Unit:25 Standard Panel:5)
Outdoor83
Ref.piping sizeLiquid/Gasømm9.52(3/8″) / 15.88(5/8″)
Refrigerant line (one way) lengthmMax.50
Vertical height differencesOutdoor is higher/lowermMax.30 / Max.15
Outdoor operating temperature rangeCooling°C-15~43*3
Heating-20~20
PanelT-PSA-5AW-E,  T-PSAE-5AW-E
Air filter, Q’tyPocket plastic net x 1(Washable)
Remote control (option)wired:RC-EX3, RC-E5, RCH-E3  wireless:RCN-T-5AW-E2
