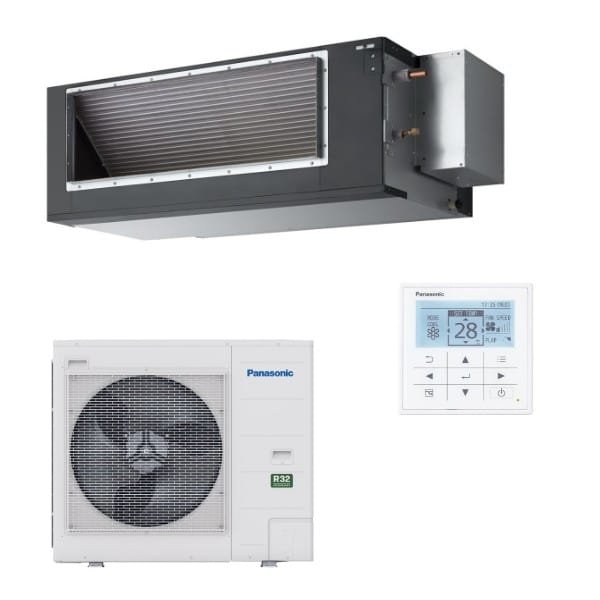

Big PACi High Static Pressure Hide Away 20.0-25.0kW Inverter – Three Phase R32

£3,688.96 - £3,998.72 ex. VAT

Clear

Note: All systems must be installed by Certified Installer.

Description

KITKIT-200PE3ZH8KIT-250PE3ZH8
Remote controllerCZ-RTC5BCZ-RTC5B
Cooling capacityNominal (Min – Max)kW19.5 (5.7 – 21.0)23.2 (6.1 – 27.0)
UK Cooling(Total – Sensible)kW20.8 – 14.026.9 – 17.4
EERW/W3.223.11
SEER5.34.9
PdesignkW19.523.2
Input power coolingkW6.067.46
Heating capacityNominal (Min – Max)kW22.4 (5.0 – 25.0)28.0 (5.5 – 29.0)
UK HeatingkW24.4128.31
COPW/W3.613.41
SCOP3.63.6
Pdesign at -10°CkW17.020.0
Input power heatingkW6.218.21
Indoor unitS-200PE3E5BS-250PE3E5B
Power sourceV / ph / Hz220 – 230 – 240 / 1 / 50220 – 230 – 240 / 1 / 50
External static pressure at shipment (adjustable)Pa75  – 120 – 18075  – 130 – 200
Air volumeHi / Med / Lom³/min72 / 63 / 5384 / 72 / 59
Sound pressureHi / Med / LodB(A)46 / 44 / 4147 / 45 / 42
DimensionH x W x Dmm486 x 1456 x 916486 x 1456 x 916
Net weightkg8688
Outdoor unitU-200PZH2E8U-250PZH2E8
Power sourceV380 – 400 – 415 / 3 / 50380 – 400 – 415 / 3 / 50
Recommended fuseA3030
Air volumeCool / Heatm³/min164 / 164160 / 160
Sound pressureCool / Heat (Hi)dB(A)59 / 6159 / 63
Sound powerCool / Heat (Hi)dB77 / 7978 / 82
DimensionH x W x Dmm1 500 x 980 x 3701 500 x 980 x 370
Net weightkg117128
Piping connectionsLiquid pipeInch (mm)3/8 (9.52)1/2 (12.70)
Gas pipeInch (mm)1 (25.40)1 (25.40)
Pipe length rangem5 ~ 905 ~ 60
Elevation difference (in/out)m3030
Pipe length for additional gasm3030
Additional gas amountg/m6080
Refrigerant (R32) / CO2 Eq.kg / T4.20 / 2.8355.20 / 3.51
Operating rangeCool Min ~ Max°C-15 ~ +46-15 ~ +46
Heat Min ~ Max°C-20 ~ +24-20 ~ +24

Additional information

Big PACi High Static Pressure Hide Away 20.0-25.0kW Inverter - Three Phase R32

Up to 200 sq.m. room – S-200PE3E5B U-200PZH2E8, Up to 240 sq.m. room – S-250PE3E5B U-250PZH2E8
