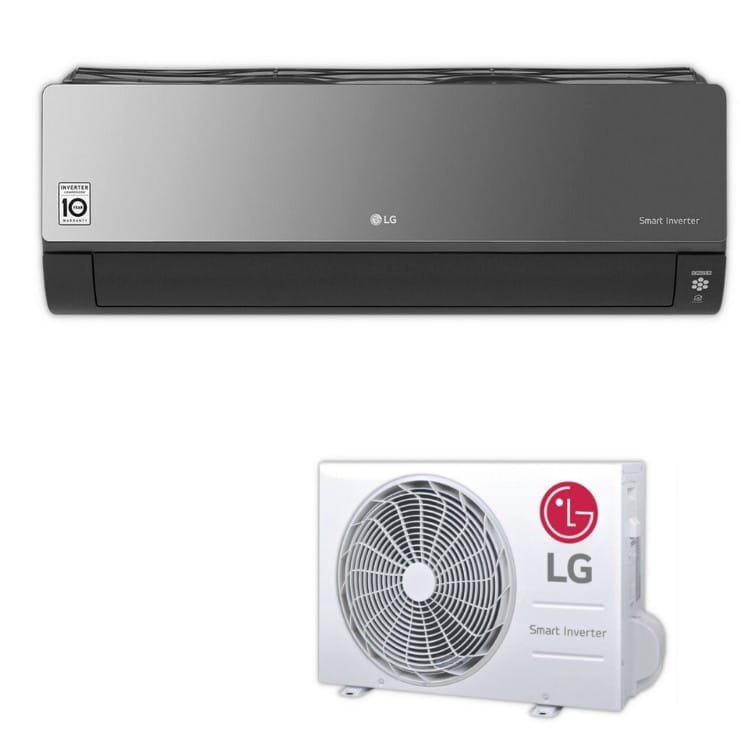

Artcool Mirror Split Systems R32

Compare
  • Full Systems (Indoor + Outdoor Units + Remote Controller)

From: £548.25 - £1,092.00 ex. VAT

Clear

Wall Mounted Models:

  • Indoor Unit: AM09BP NSJ + Outdoor Unit: AC09BQ.UA3
  • Indoor Unit: AM12BP NSJ + Outdoor Unit: AC12BP.UA3
  • Indoor Unit: AM18BP NSK + Outdoor Unit: AC18BP.UL

Description

Indoor AC09BQ.NSJ AC12BQ.NSJ AC18BQ.NSK AC24BQ.NSK
Capacity Cooling Min/Rated/Max W 890 / 2500 / 3700 890 / 3500 / 4040 900 / 5000 / 5500 900 / 6600 / 7420
Heating +7°C Min/Rated/Max W 890 / 3300 / 4100 890 / 4000 / 5100 900 / 5800 / 6400 900 / 7500 / 8640
Heating -7°C Rated W 2600 3000 4200 4850
Power Input Cooling Rated W 656 1080 1562 2164
Heating +7°C Rated W 800 1050 1611 2238
EER W/W 3.81 3.24 3.20 3.05
S.E.E.R. 7.0 6.6 7.0 6.9
P design C kW 2.5 3.5 5.0 6.6
COP W/W 4.13 3.81 3.60 3.35
S.C.O.P. 4.0 4.0 4.3 4.2
P design H kW 2.5 2.5 3.9 5.0
Energy Label Cooling (A++ to E Scale) A++ A++ A++ A++
Heating (A++ to E Scale) A+ A+ A+ A+
Annual Energy
Consumption
Cooling kWh 125 186 250 335
Heating kWh 875 875 1270 1628
Sound Pressure Cooling S / L / M / H dBA 19 / 27 / 35 / 41 19 / 27 / 35 / 41 31 / 34 / 39 / 44 31 / 34 / 42 / 47
Heating L / M / H dBA 27 / 35 / 41 27 / 35 / 41 34 / 39 / 44 34 / 42 / 47
Sound Power Cooling H dBA 59 59 60 65
Air Flow Rate Cooling S / L / M / H m3/min 3.0/4.2/7.5/10.0 3.0/4.2/7.5/10.0 8.0/10.5/13.0/14.5 8.0/10.5/13.1/16.1
Max (Power) m3/min 12.5 12.5 15.5 20.0
Heating L / M / H m3/min 5.6 / 7.2 / 10.0 5.6 / 7.2 / 10.0 11.0 / 13.5 / 16.0 10.5 / 13.1 / 16.1
Dehumidification Rate l/h 1.1 1.3 1.8 2.5
Running Current Cooling Rated A 3.3 4.7 6.9 9.8
Max A 6.0 6.0 9.0 14.0
Heating Rated A 4.0 4.7 7.1 10.4
Max A 7.0 7.0 9.5 14.0
Starting Current Cooling /Heating Rated A 3.3 / 4.0 4.7 / 4.7 6.9 / 7.1 9.8 / 10.4
Power Supply Ø/V/Hz 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50 1 / 220-240 / 50
Circuit Breaker A 15 15 20 25
Power Supply Cable N x mm2 3 x 1.0 3 x 1.0 3 x 1.5 3 x 2.5
Power & Transmission
Cable
N x mm2 4 x 1.0
(Including Earth)
4 x 1.0
(Including Earth)
4 x 1.0
(Including Earth)
4 x 1.0
(Including Earth)
Dimension mm 837 x 308 x 192 837 x 308 x 192 998 x 345 x 212 998 x 345 x 212
Net Weight kg 9.9 9.9 12.8 13.6
Fan Motor Output W 30 30 30 60
Outdoor AC09BQ.UA3 AC12BQ.UA3 AC18BQ.UL2 AC24BQ.UL2
Operation Range Cooling Min /Max °CDB -10 / 48 -10 / 48 -15 / 48 -15 / 48
Heating Min /Max °CDB -10 / 24 -10 / 24 -10 / 24 -10 / 24
Sound Pressure Cooling High dBA 48 48 53 53
Heating High dBA 50 50 55 54
Sound Power Cooling High dBA 65 65 65 70
Air Flow Rate Cooling High m3/min 27 27 35 50
Piping Length (Odu/Idu) Min /Max m 3 / 15 3 / 15 3 / 20 3 / 30
Elevation(Odu/Idu) Max m 7 7 10 15
Piping Connection Liquid OD(Outside) mm (inch) Ø 6.35 (1/4) Ø 6.35 (1/4) Ø 6.35 (1/4) Ø 6.35 (1/4)
Gas OD(Outside) mm (inch) Ø 9.52 (3/8) Ø 9.52 (3/8) Ø 12.7 (1/2) Ø 15.88 (5/8)
Drain OD(Outside) mm (inch) 21.5 (0.85) 21.5 (0.85) 21.5 (0.85) 21.5 (0.85)
Refrigerant Type R32 R32 R32 R32
Charge at 7.5m g 700 700 1000 1100
t-CO2 eq 0.47 0.47 0.68 0.74
Additional charge g/m 20 20 20 20
GWP 675 675 675 675
Fan Motor Output W 43 43 43 85
Compressor Type Twin Rotary Twin Rotary Twin Rotary Twin Rotary
Net Weight kg 25.1 25.1 34.4 46.0
Dimension mm 717 x 483 x 230 717 x 483 x 230 770 x 545 x 288 870 x 650 x 330
