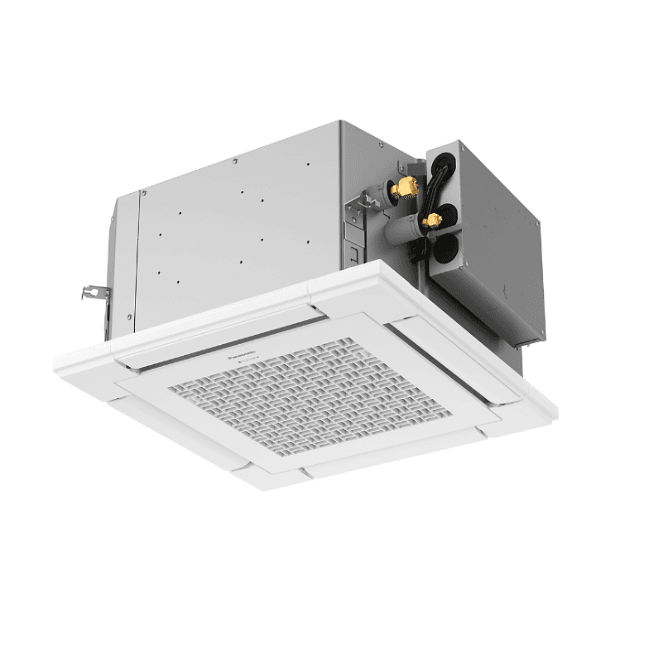

4 Way 60×60 Cassette Indoor Units

Compare

From: £349.05 - £609.70 ex. VAT

Clear

Description

4 Way 60×60 Cassette Indoor/Panel Cooling capacity Heating capacity Connection Sound pressure Dimension / Net weight Piping connections
Cool—Heat(Hi/Lo/S-Lo) Indoor H x W x D Panel H x W x D Liquid Gas pipe
kW/kCal/h kW/kCal/h mm dB(A) mm/kg mm/kg Inch(mm)
2.0kW CS-MZ20UB4EA/CZ-BT20EW 2.00/1720 3.20/2750 4 x 1.5  — 260x575x575/18 51x700x700/2.5  —
2.5kW CS-Z25UB4EAW/CZ-BT20EW 2.80/2 410 3.60/3 100 4 x 1.5 to 2.5 34/25/22—35/28/25 260x575x575/18  51x700x700/2.5 1/4(6.35)/3/8(9.52)
3.5kW CS-Z35UB4EAW/CZ-BT20EW 3.50/3 010 4.50/3 870 4 x 1.5 to 2.5 34/26/23—35/28/25 260x575x575/18 51x700x700/2.5 1/4(6.35)/3/8(9.52)
4.2kW CS-Z50UB4EAW/CZ-BT20EW 5.00/4 300 5.30/4 558 4 x 1.5 to 2.5 37/28/25—38/29/26 260x575x575/18  51x700x700/2.5 1/4(6.35)/1/2(12.70)
5.0kW CS-Z60UB4EAW/CZ-BT20EW 6.00/5 160 8.50/7 310 4 x 1.5 to 2.5 42/32/29—43/32/29 260x575x575/18  51x700x700/2.5 1/4(6.35)/1/2(12.70)

Additional information

4 Way 60x60 Cassette Indoor Units

Up to 20 sq.m. room – CS-MZ20UB4EA, Up to 25 sq.m. room – CS-Z25UB4EAW, Up to 35 sq.m. room – CS-Z35UB4EAW, Up to 50 sq.m. room – CS-Z50UB4EAW, Up to 60 sq.m. room – CS-Z60UB4EAW
